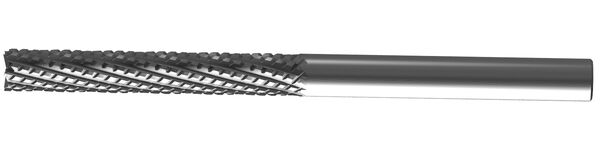

CM150 Multi-Tooth End Mill VHW - CVD coated
Product

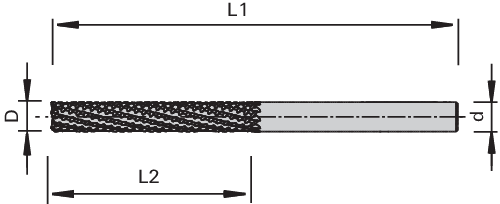

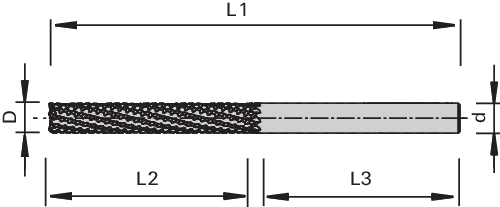

Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines or robots
- Suitable for roughing and finishing of all fiber reinforced plastics, graphite and other materials
Design
- Design with low, one-sided spiral angle and chip breakers facing in the opposite direction enables cutting in any direction
Advantages
- robust tool design
- Universal application
- Suitable for roughing and finishing
Notes
- Other dimensions and configurations on request
- Also available with plunge tip
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L3
[mm] |
L1
[mm] |
Z | Helical direction |
Shear∡
[°] |
Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
||||||||||||
| 6 | 20 | 6 | 40 | 65 | 10 | positive | 15 | A | R | 80503585 | ||
| 8 | 25 | 8 | 45 | 75 | 12 | positive | 15 | A | R | 80503586 | ||
