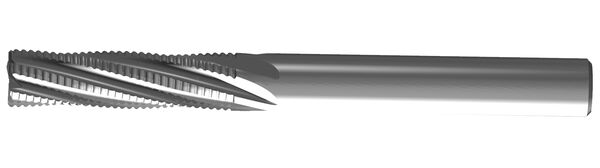

CM160 Roughing cutter VHW - CVD coated
Product

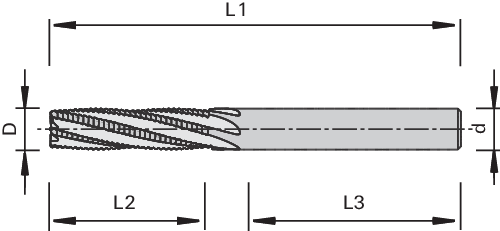

Drawing
-
- Solid Tungsten Carbide
- MEC
Article
Description
Machine / Application
- Can be used on CNC and gantry machines or robots
- geeignet zum Schruppen unterschiedlicher Materialien, inbesondere CFK, mit sehr hohem Vorschub
Design
Advantages
Notes
|
Ø D
[mm] |
L2
[mm] |
Ø d
[mm] |
L1
[mm] |
Z | Helical direction |
Shear∡
[°] |
Type | L/R | Ident-No. | Comp./ Inqu. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimensions entered are not listed?
available from stock |
|||||||||||
| 6 | 20 | 6 | 65 | 4 | positive | 15 | A | R | 80503587 | ||
| 8 | 25 | 8 | 75 | 6 | positive | 15 | A | R | 80503588 | ||
