Selection via tool type

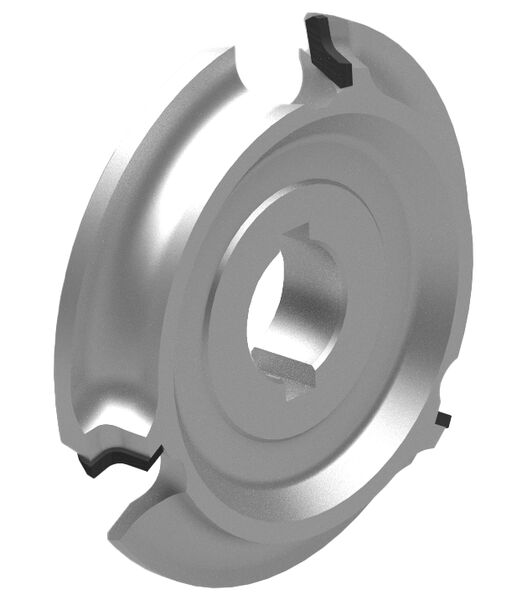

Edge Rounding Cutters DP - KDT

Product

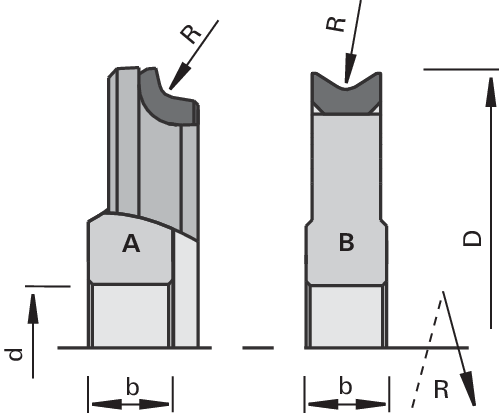

Drawing

  • Polycrystalline diamond [DP]
  • MEC

Article

Description

Machine / Application

  • edge banding machines KDT

  • zum Radiusfräsen von Massivholzanleimern sowie Furnier- und Kunststoffkanten

Design

  • n max = 24,000 min-1

Advantages

Notes

  • sense of rotation according to VDMA 8849

Table- and picture caption ...

R
[mm] 		Ø D
[mm] 		Ø D1
[mm] 		a
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		Type nmax
[min-1] 		L/R Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

2,0 68 60,88 10.4 10 16 3 5x2,3 A 24,000 L asymmetrical 80511660
|
2,0 68 60,88 10.4 10 16 3 5x2,3 A 24,000 R asymmetrical 80511659
|
2,0 69 10 16 6 5x2,3 B 24,000 N symmetrical 80511658
|
